Product Description

Enjoy Exceptional Airflow and Optimal Comfort !

<img alt=”furnace blower motor” src=”https://m.media-amazon.com/images/S/aplus-media-library-service-media/470dcac5-f5b7-488a-960d-2517c61b5564.__CR0,0,1464,600_PT0_SX1464_V1___.jpg”/>

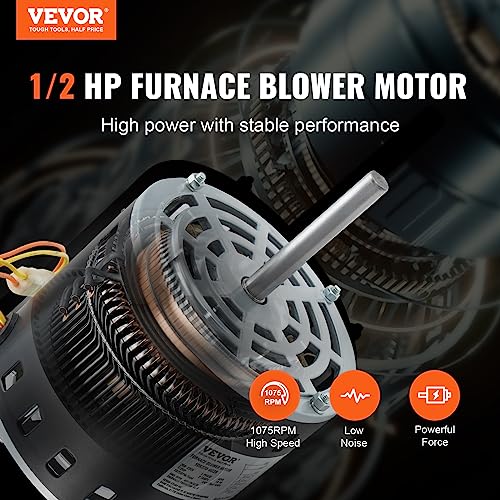

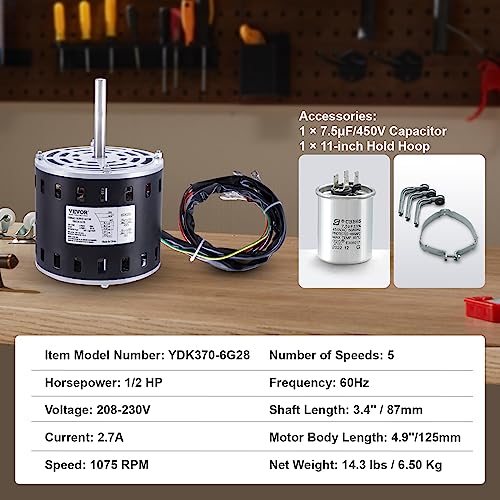

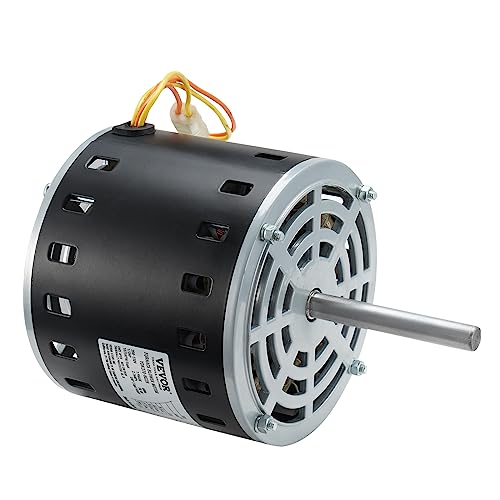

VEVOR 1/2HP Furnace Blower Motor-Perfect companion for your indoor climate needs. 208-230V voltage, 2.7A current, 48 frame size, 3.4″ shaft length, 0.5″ shaft diameter, CW/CCW dual rotation, with 7.5μF/450V capacitor, 11″ hold hoop. A perfect motor to air conditioning duct system and furnaces.

<img alt=”furnace blower motor replacement” src=”https://m.media-amazon.com/images/S/aplus-media-library-service-media/605c771c-1282-48e2-8fa0-e43e8fa08036.__CR0,0,1464,600_PT0_SX1464_V1___.jpg”/>

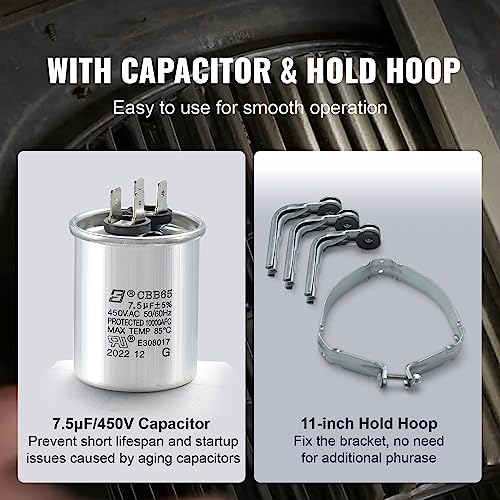

Specially equipped with additional accessories (CBB65 7.5μF/450V capacitor & 11-inch hold hoop), eliminating the need to worry about choosing compatible components separately, more convenient for you to use!

<img alt=”blower motor for furnace” src=”https://m.media-amazon.com/images/S/aplus-media-library-service-media/ea605424-fe68-4b8b-b734-babe297c531b.__CR0,0,1464,600_PT0_SX1464_V1___.jpg”/>

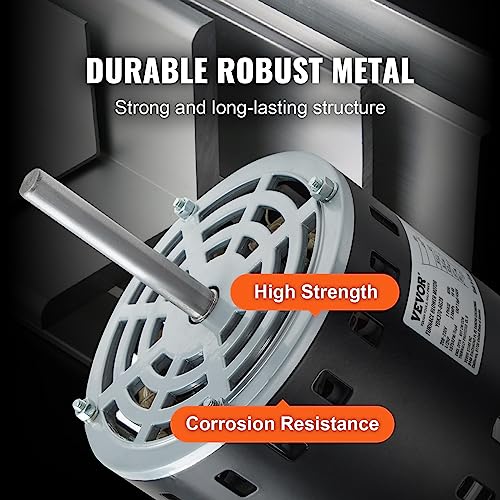

Furnace blower motor casing is made of durable metal material, with strength, reliability, excellent durability, and high corrosion resistance.

<img alt=”electric motor furnace blower” src=”https://m.media-amazon.com/images/S/aplus-media-library-service-media/788e7153-8e77-474b-842f-39ef5447e093.__CR0,0,1464,600_PT0_SX1464_V1___.jpg”/>

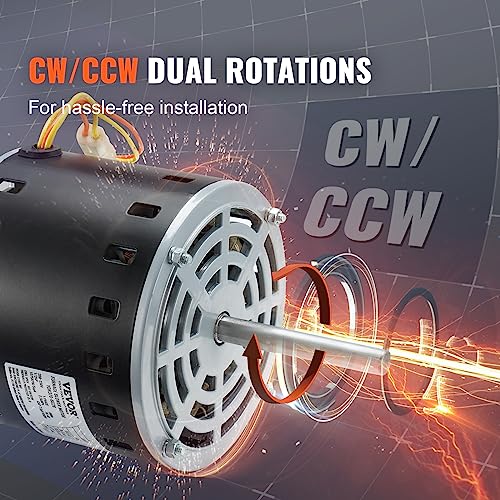

Achieve the perfect direction every time with the versatile CW/CCW dual rotation capability. Say goodbye to the hassle of trouble installation.

<img alt=”replacement furnace blower motor” src=”https://m.media-amazon.com/images/S/aplus-media-library-service-media/63d4c3c3-0997-4a57-bb87-a39bc53fd83b.__CR0,0,1464,600_PT0_SX1464_V1___.jpg”/>

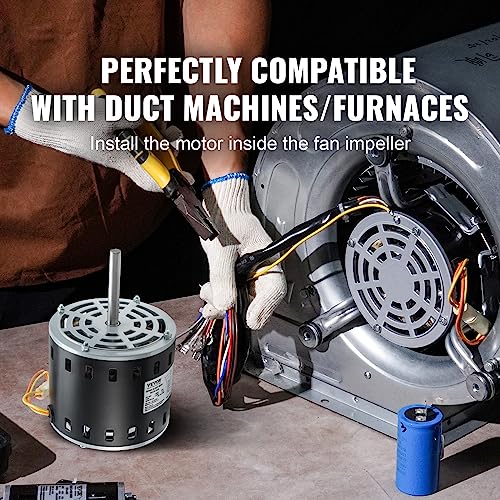

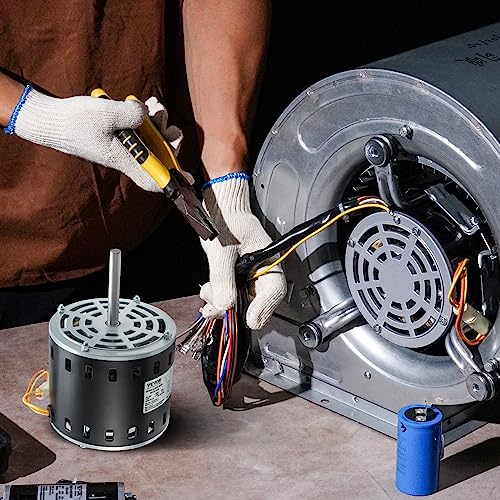

Suitable for residential air conditioning duct units and heaters (with the motor inside the fan blade), capable of meeting various household area requirements.

<img alt=”furnace parts blower motor” src=”https://m.media-amazon.com/images/S/aplus-media-library-service-media/99b421ef-7ab8-4af5-b3d0-c610ea3cba59.__CR0,0,1464,600_PT0_SX1464_V1___.jpg”/>

Tools Needed: (not included in the package)

Drill Set – Most common are Phillips, 1/4, and 5/16 fittings. Pliers – Help pull things off such as terminal leads.

Flat Head Screw Driver – Help pry things apart and get leverage when needed.

Wire Strippers/Cutters – To adapt and strip wiring to match up to your unit’s specs.

Wrench – For loosening and tightening bolts or set screws.

Measuring Tape -Make sure you position the fan blade correctly on the new motor.

Multi-Use Lubricant Spray – Loosen up all those years of use.

Voltage Meter – Help you make sure power is off and items are disengaged before servicing.

Capacitor-Discharge Pen Or Electrical Grounded Screw Driver – This is what you can use to disengage the capacitor.

Fan Blade Puller – You most likely will need this as most fans have been on units for years and are stuck on there like glue.

Sawzall Tool or SDSB100 Shaft Blaster – In some cases, you need to cut the shaft down to match the original or cut the shaft to the old motor to get it off.
